Casa /Prodotti/Generatore di riserva industriale/YTO Brand YTO Yangdong 60hz Top Diesel Generator 13kw 15kva China Water Cooled Diesel Generator TPD15Y6

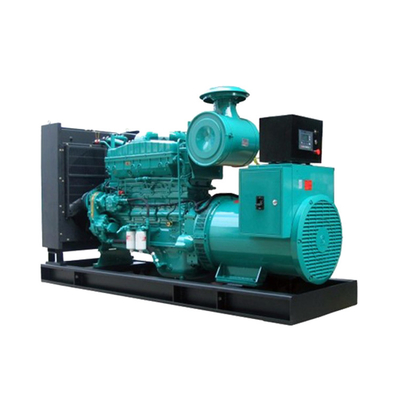

YTO Brand YTO Yangdong 60hz Top Diesel Generator 13kw 15kva China Water Cooled Diesel Generator TPD15Y6

1.0 set
MOQ
$2,500.00 - $3,500.00
prezzo
YTO Brand YTO Yangdong 60hz Top Diesel Generator 13kw 15kva China Water Cooled Diesel Generator TPD15Y6
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3months-1year
Certificazione: CE
Model Number: TPD15Y6
Rated Voltage: 230V (Can be adjusted)
Speed: 1800RPM
Frequency: 60Hz
Weight: 870 Kg
Engine model: YD385D
Engine brand: yangdong
Engine rated power: 13KW /16.25KVA
Engine standby power: 14.3KW/17.88KVA
Engine speed: 1800RPM
Bore & Stroke: 80*90mm
Displacement: 1.532L
Compression ratio: 18.0:1
Type: In line,3 cylinders,4 stroke
Governor: Mechanical
Informazioni di base
Certificazione: CE
Model Number: TPD15Y6, YD385D
Termini di pagamento e spedizione
Packaging Details: PE FILM PACKING PACKING: STANDARD SEAWORTHY PACKING
Supply Ability: 150 Piece/Pieces per Month
Descrizione di prodotto
DIESEL GENERATOR DATA:
Generator set model
: TPD15Y6
Generator rated power
: 12KW/15KVA
Generator standby power
: 13KW /17KVA
Rated frequency
: 60HZ
Rated voltage
: 440/254V (Can be adjusted)
Rated speed
: 1800RPM
Fuel consumption
: 2.78L/h
Open type size
: 1550x700x950 MM
Silent type size
: 2200×940×1460 MM
Open type weight
: 450 Kg
Silent type weight
: 870 Kg
ENGINE DATA:
Engine model:
: YD385D
Engine brand
: Yangdong
Engine rated power
: 13KW /16.25KVA
Engine standby power
: 14.3KW/17.88KVA
Engine speed
: 1800RPM
Bore & Stroke
: 80×90 mm
Displacement
: 1.532L
Compression ratio
: 18.0:1
Fuel consumption at 100% load
: 255g/kW.h
Type
: In line,3 cylinders,4 stroke
Aspiration
: Nature
Governor
: Mechanical
Starting method
: DC 24V
Cooling method
: Water cooled by radiator
ALTERNATOR DATA:
Alternator brand
: STAMFORD/MECC ALTE/TONTEK
Rated power
: 13.2kW/16.5KVA
Frequency
: 60HZ
Speed
: 1800RPM
Voltage
: 440/254V (Can be adjusted)
Power factor
: 0.8 (lagging)
Phase and wire
: 3 phase 4 wires
Excite type
: Single Bearing, Close coupled. Brushless, self-exciting,AVR
Protection class
: IP23
Insulation class
: H
Q: What is the power range of your generator sets? A: We can provide 10 KVA to 4000KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz. Q: What is the lead time? A: 7 working days against the 30%T/T deposit Q:What is your MOQ? A: Our MOQ is 1 unit Q:What about your warranty? A:13 months or 1000 working hours,whichever comes first. Q: What are your payment terms? A: 30% TT as deposit,70% TT before Shipment or Irrevocable LC at sight. Q: What is your company's production capacity? A:150 Sets per month Q: Can you supply OEM service A: YES
